Pulse Dust Collect 0.1-25mm Wire Granulator Machine

HENAN TMS MACHINERY CO., LTD
Contact Now

Pulse Dust Collect 0.1-25mm Wire Granulator Machine

  • 1
  • 2

Brand Name : TMS

Model Number : 800

Certification : CE, ISO

Place of Origin : Zhengzhou, China

MOQ : 1 set

Price : USD35200-36650 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 20 work days

Packaging Details : Full container 1*40'GP for wire recycling machine

Name : Wire recycling machine

Application : Waste wires

Total motor Power : 110.76kw

Copper purity : 99.5%

Input : 400-600kg/h

Wire range : 0.1-25mm

Overall dimension : 10128*5977*3200mm

collection coefficien : 99%

Contact Now

Pulse Dust Collect 0.1-25mm Wire Recycling Machine

Introduction of wire recycling machine

In the world, there are many kinds of waste cables that have been used or eliminated. Our aim is to overcome the loss of copper and other by-products in the process of regeneration and make it more scientific and automatic. It reduces personnel, improves the recovery rate, and thus improves the production efficiency

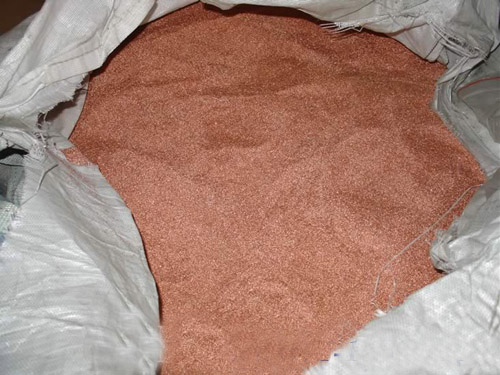

Wire recycling machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the separated copper looks as big as rice grain, it is called "copper rice machine", which can also be seen that it is an environmentally friendly mechanical product.

Technical parameters of wire recycling machine

Model TMS-800
Overall dimension 10128*5977*3200mm
Input 400-600kg/h
Copper purity 99.5%
Dust removal effect 99%
Total motor power 110.76kw

Feature of wire recycling machine

1. The layout of production line is compact and space utilization is high.

2. Intelligent control, high degree of automation, overload automatic shutdown protection.

3. The sorting rate of air separation equipment is over 99%

4. The crusher adopts high-strength alternating cutter shaft with high grinding efficiency. The knife is alloy tool steel with long service life.

5. The crusher is equipped with air cooling system to delay the heating of materials and crushing bin.

6. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.

Main component of wire recycling machine

1. Single shaft shredder. The first single shaft shredder shears the waste cable into a certain length (5-15cm) driven by motor, and then transmits it to the crusher through the belt conveyor line. SLF reducer is used, and the crusher motor is schneider; the crusher structure single shaft structure; the main structure of the crusher is welded by 45mm thick 45* carbon steel iron plate, with the wall thickness of 50mm, and the frame is 120*120 *8mm square tube Frame steel plate ≥ 12mm.

2. Vibrating separator. It is used to separate copper and aluminum.

3. Second shredder. Each wall of the crushing chamber is equipped with guard board, which protects the machine body and rubs the mixture. The main structure of the crusher is welded with 45 mm thick 45 * carbon steel iron plate. The main shaft is hardened and tempered, with a rotating diameter of Φ 570, and a blade length of 100mm.

4. Dust collection. Pulse dust collector is a kind of dedusting device that uses fiber fabric to filter; the dust containing gas and nonmetal are absorbed into the dust collector through the dedusting fan, and after screen filtration, inertia collision, detention, diffusion and gravity settlement, the filtered dust falls into the dust collection funnel at the lower end under the vibration of the vibration motor installed on the top cover, and the filtered gas is discharged from the top of the dust collector.


Pulse Dust Collect 0.1-25mm Wire Granulator Machine
